Product Description

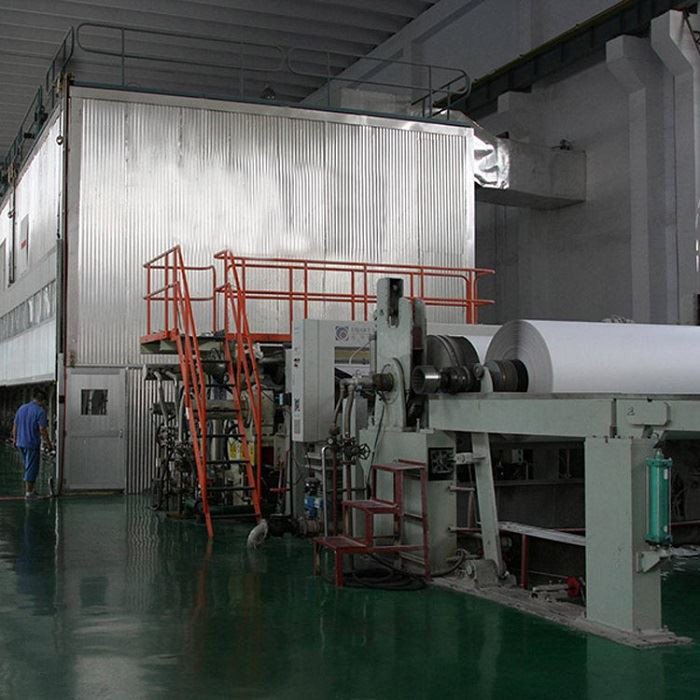

The Offset Paper Making Machine is designed to produce offset paper by processing a paper pulp water suspension through filtration, dehydration forming, mechanical extrusion dehydration, and drying. The raw material used is high-quality pulp board. The paper produced by the Offset Paper Making Machine requires calendering.

Finished Product

Offset paper, also known as coated paper, is made by applying a layer of white paint to the surface of the base paper and then processing it with super calendering. It is available in single-sided and double-sided variants, with the surface being either glossy or textured. The paper has a smooth surface, high whiteness, and excellent ink absorption and retention properties. It is mainly used for offset printing and gravure fine-screen printing, such as in high-quality picture albums, calendars, books, and magazines.

Process Program

• Air-cushion headbox
• Single fourdrinier wire
• Four-roll two-press
• φ1100/900 large roll press
• 30 sets of φ1800 dryers (6+8+8+8)
• Gluing machine
• 15 sets of φ1800 dryers (7+5)
• Four-roll calender
• B/M meter (reserved position)
• Winding machine

Main Technical Parameter

Output: Offset paper

Basic weight: 70-150gsm

Design speed: 350m/min

Working speed: 300m/min

Capacity: 100TPD

Main Structure

The Offset Paper Making Machine features an air-cushioned headbox and adopts a half-open exhaust hood for ventilation. It relies on a full digital control AC frequency conversion drive. Different parts of the machine have distinct shapes: the forming part is a Fourdrinier wire, the pressing part consists of a four-roll two-press and a large-diameter press, and the drying part includes a trapezoidal gearbox and a square box.

FAQ

(1) How about your paper machine quality?

Our company manufactures and is managed strictly according to the IOS9001:2008 System, and our paper machines meet all CE standards or even stricter standards.

(2) What kind of paper machines does your factory produce?

We produce toilet paper machines, culture paper making machines, and more.
